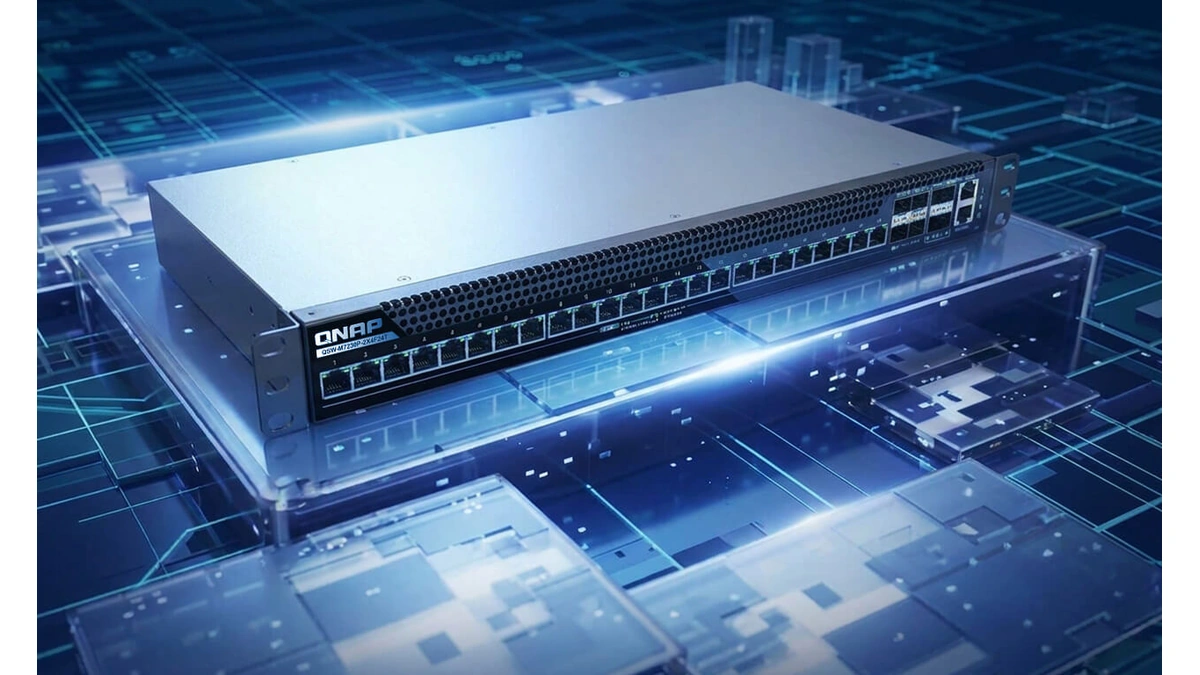

The QNAP QSW-M7230P-2X4F24T puts two 100GbE uplinks, four 25GbE ports and 24 PoE++ 10GbE copper ports into a single 1U chassis. It is a managed switch with what QNAP calls L3 Lite routing, aimed at mid-sized and large organizations that run storage, virtualization and AI workloads and want one box to span the core, aggregation and access layers.
QNAP lists the 100GbE ports as QSFP28, the 25GbE ports as SFP28 and the 24 RJ45 ports as 10GbE with IEEE 802.3bt support, good for up to 90 W each. The 25GbE ports are meant for NAS and server aggregation, while the copper ports serve workstations and powered devices such as Wi-Fi 7 access points, AV over IP encoders and PTZ cameras. Switching capacity is 1080 Gbps. Two QNAP QSW-M7230P-2X4F24T units linked over 100GbE scale to 48 10GbE workstations and eight 25GbE NAS units, per QNAP.
The power figures need a careful read, because per-port and total power are different numbers. Twenty-four ports at 90 W would draw 2,160 W, and the switch has an 800 W budget, so a rack full of high-draw devices cannot all run at the maximum off one QNAP QSW-M7230P-2X4F24T at once. QNAP's QSS Pro management software adds live wattage monitoring, power priority and remote PoE reboot, which are the tools for deciding what gets power first. Ruby Chan, a product manager at QNAP, says combining 100GbE, L3 Lite routing and high-power PoE in one device "has traditionally carried a steep price tag". The company has not published a price or an availability date for the switch.
On the routing side, the QNAP QSW-M7230P-2X4F24T handles IPv4 and IPv6, static routing, DHCP and VLANs, with MC-LAG and LACP so a link or a peer switch can fail without taking services down, according to QNAP. For AV installations it adds IGMP snooping and a PTP Boundary Clock to keep audio and video in sync. QNAP also pairs the switch with its NAS-based ADRA NDR X, which it says detects and isolates ransomware, and with Airgap+ offline backups. Static routing is the only routing feature QNAP names, and dynamic protocols such as OSPF or BGP are not among them, so teams that depend on those should check the spec sheet before planning around the QNAP QSW-M7230P-2X4F24T.
